CFD-Xpress utilizes the CENTAUR hybrid grid generator to achieve automatic and flexible paneling for complex geometries.

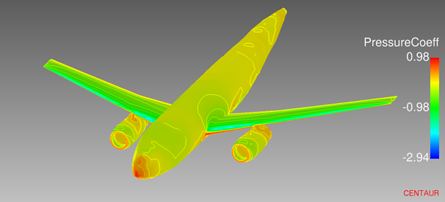

• Flow past an aircraft (wing – body – nacelle)



  Unstructured paneling with triangles

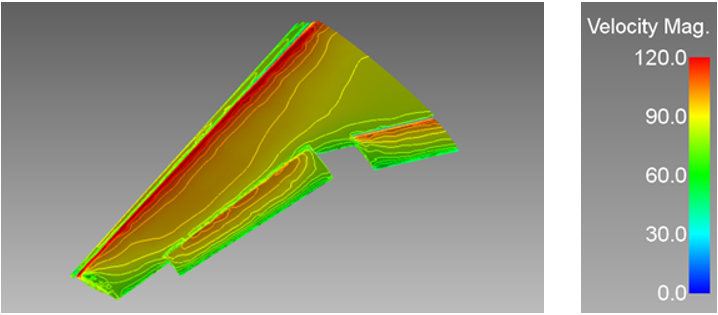

• Flow past a high-lift wing

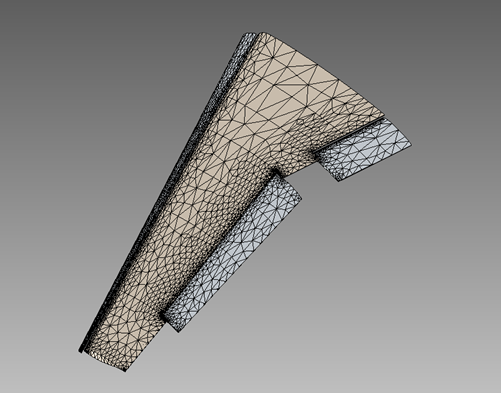

  Unstructured paneling with triangles

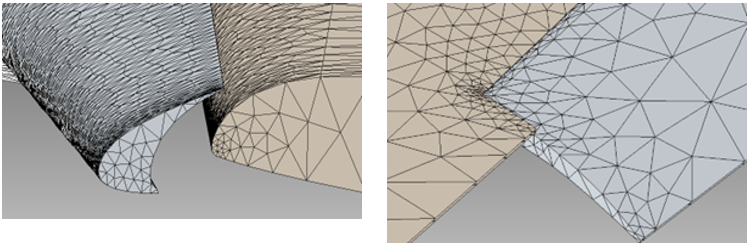

  Views close to the flap and the slat

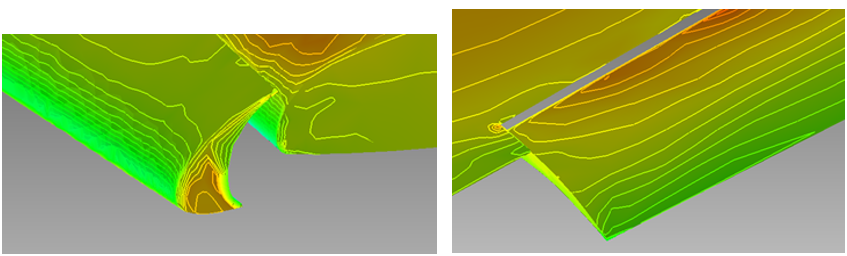

  Views close to the flap and the slat
