Radial Centrifugal Pump

These two geometries represent the impeller and volute casing of a radial centrifugal pump. Each component was meshed separately using CENTAUR to capture its distinct flow features.

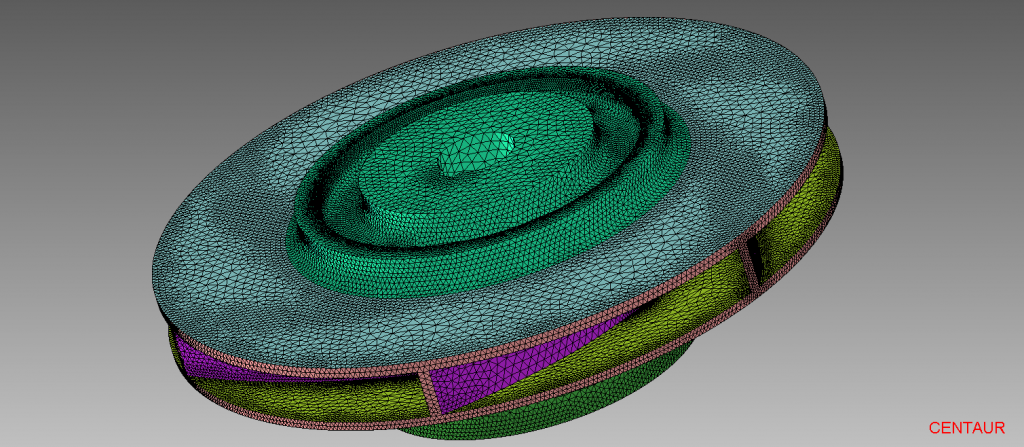

Impeller Surface Mesh
Impeller Surface Mesh

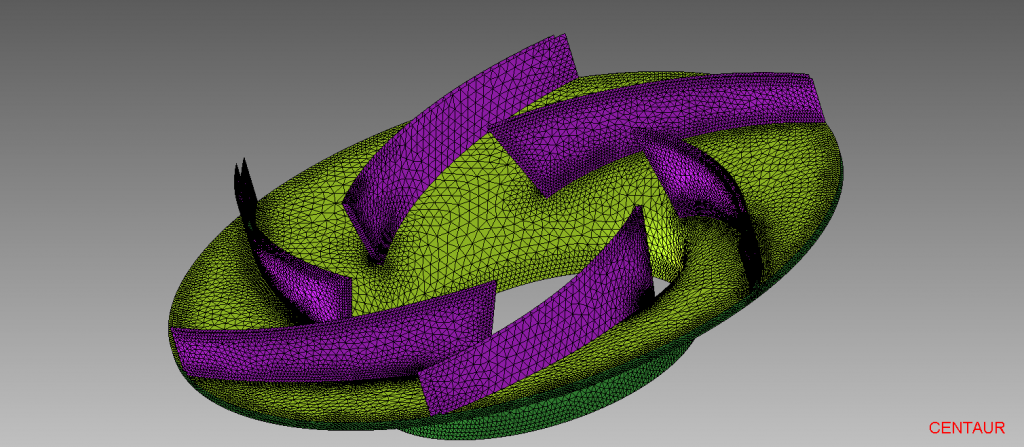

Detail of Impeller Surface Mesh
Detail of Impeller Surface Mesh
Impeller Boundary Layer Mesh
Impeller Boundary Layer Mesh

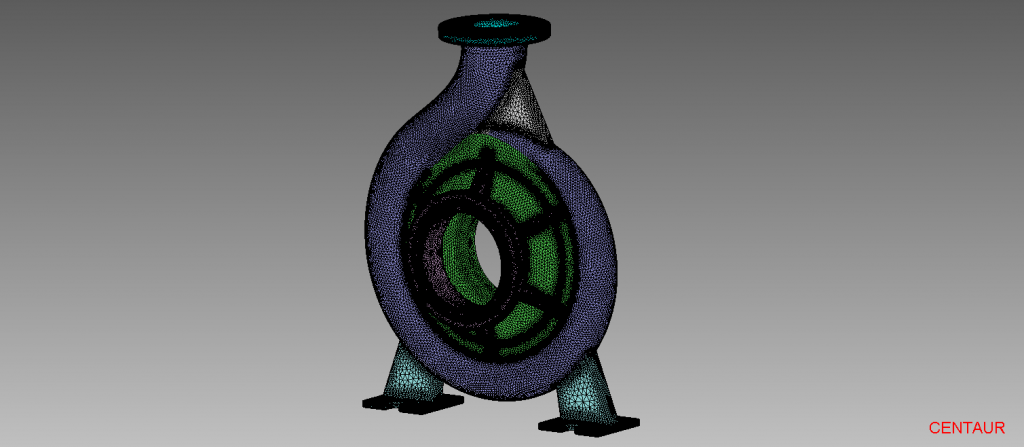

Casing Surface Mesh
Casing Surface Mesh

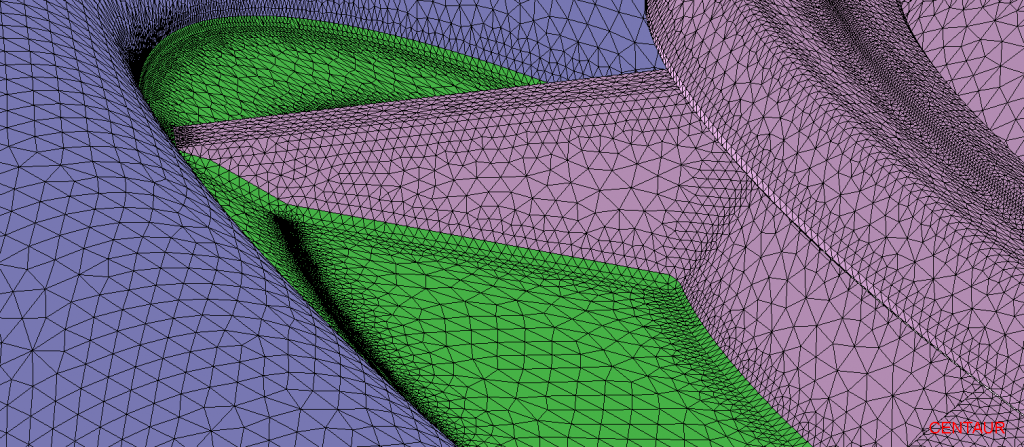

Detail of Casing Surface Mesh
Detail of Casing Surface Mesh
