Pelton Turbine Runner

This geometry represents the runner of a Pelton turbine with multiple spoon-shaped buckets arranged around a central disk. A hybrid mesh was generated using CENTAUR, capturing the detailed curvature of each bucket and the narrow gaps between them.

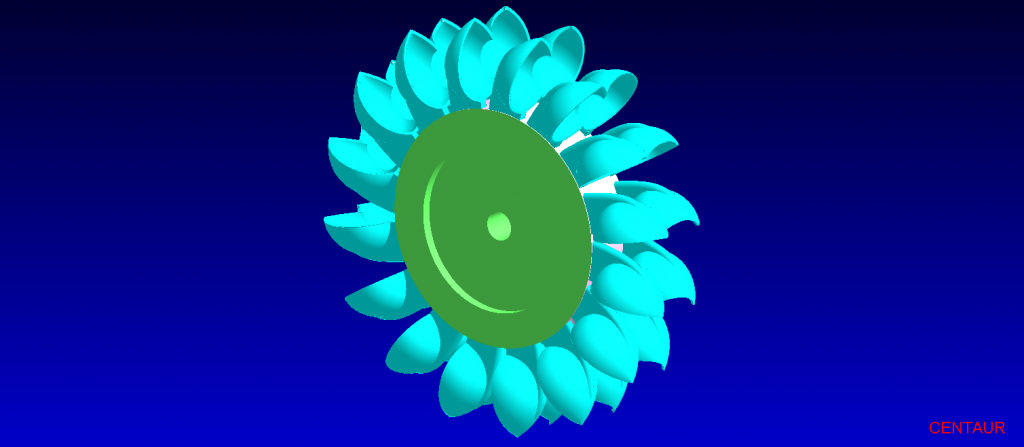

CAD Model
CAD Model

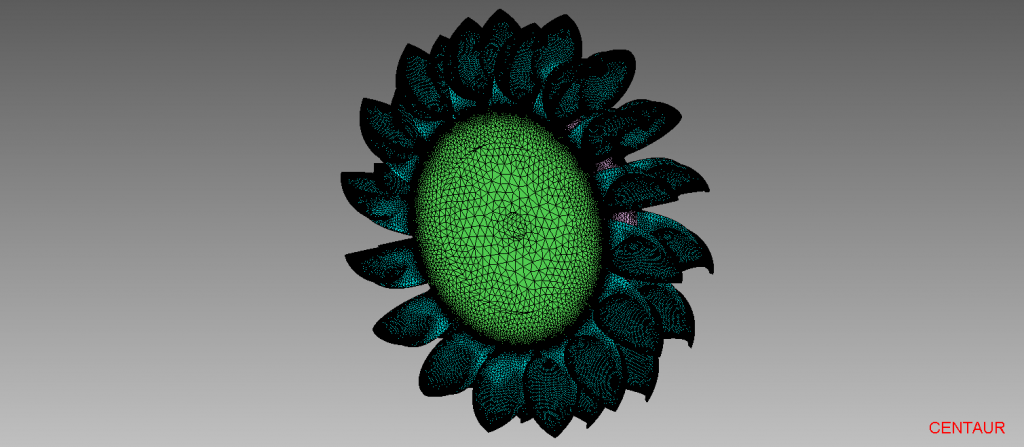

Surface Mesh
Surface Mesh

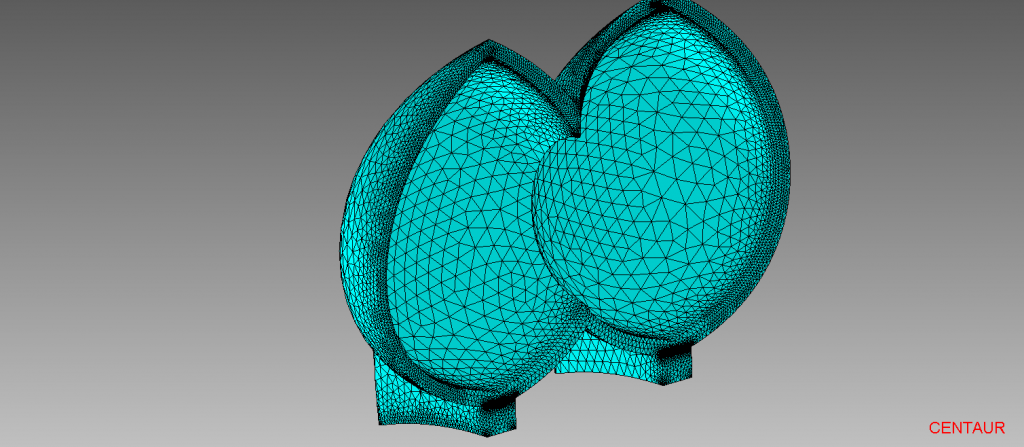

Buckets
Buckets

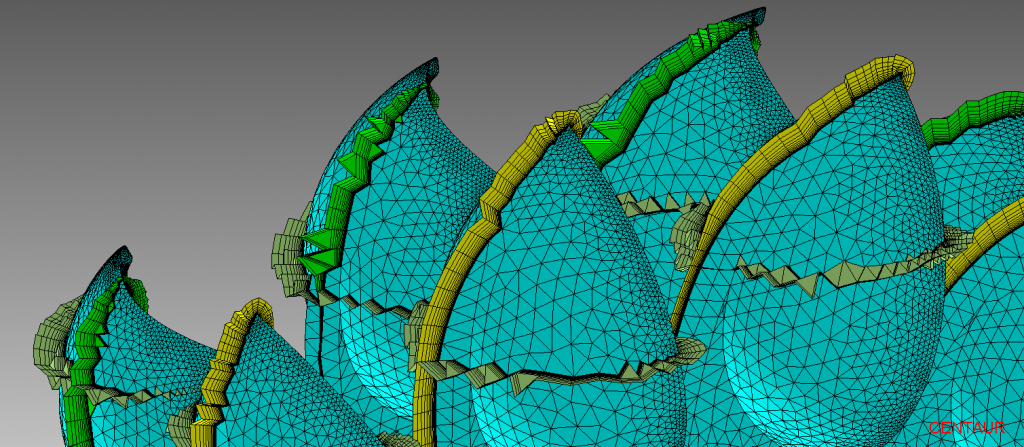

Prismatic Boundary Layer Mesh on Buckets
Prismatic Boundary Layer Mesh on Buckets

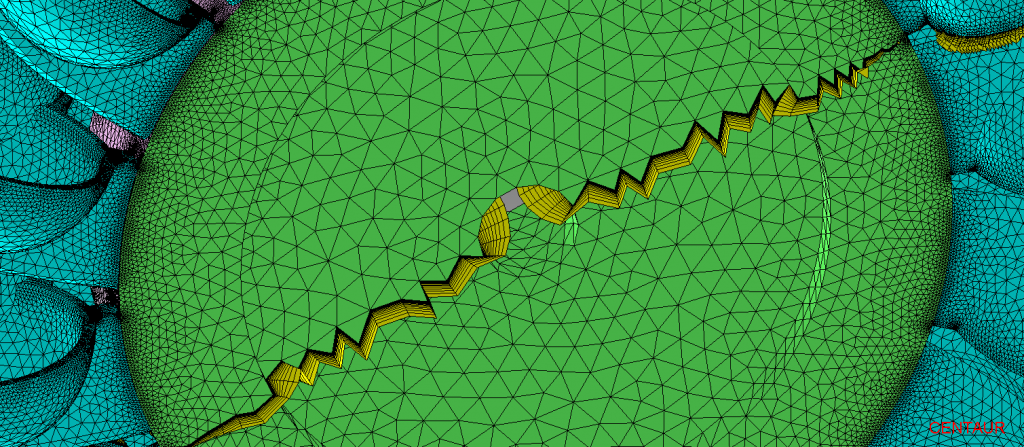

Prismatic Boundary Layer Mesh on Runner
Prismatic Boundary Layer Mesh on Runner
